Aparna Rollform manufactures cable trays at its plant in Patancheru, Hyderabad. Its range includes perforated, ladder-type, angular ladder, and solid-bottom trays, along with covers. Finishes include pre-galvanised (GI), hot-dip galvanised (HDG), and powder-coated options, depending on the product. Buyers can contact the manufacturer’s sales team for enquiries.
Aparna Rollform’s plant is located in the Patancheru industrial belt. For buyers looking for cable tray manufacturers in Hyderabad, the factory location is one detail to check along with the product range, specifications, and finish.
Start with your approved drawings or bill of quantities. Share the tray type, dimensions, quantity, and installation conditions with the sales team. This helps you discuss the actual requirement instead of comparing quotations that may cover different materials or finishes.
The Aparna Rollform plant is located at Survey No. 815, AA/1, Patancheru, Rudraram Mandal, Telangana 502329, India, and can be contacted via phone at 📞91540 88439 / 📞91549 89193, or by email at info@aparnarollform.com.
Aparna Rollform’s cable tray range includes perforated cable trays, ladder cable trays, angular cable trays, solid-bottom cable trays, and also cable tray covers.
The cable trays are available in different materials and finishes, depending on the product. Material options include aluminium and stainless steel, while finishes include pre-galvanised (GI), hot-dip galvanised (HDG), powder coating, painted, and red oxide options, where applicable.
| Type | Width | Height | Thickness | Material | Finish |
|---|---|---|---|---|---|
| Perforated cable trays | 50–1500 mm | 25–120 mm | 1.6–3.0 mm | Aluminium, stainless steel | GI, HDG, powder coated |
| Ladder-type cable trays | 50–1500 mm | 50–120 mm | 1.6–3.0 mm | Aluminium, stainless steel | GI, HDG, powder coated, painted |
| Angular ladder cable trays | As per approved specification | As per approved specification | As per approved specification | As applicable | As applicable |
| Solid-bottom cable trays | 50–300 mm | 25 mm & 38/40 mm | 1.6/2.0/3.0 mm | Aluminium | GI, HDG, powder coated |
| Cable tray covers | 50–1000 mm | 15–25 mm | 1.6–3.0 mm | As applicable | Same as applicable tray |
Note: Runner angle sizes range from 25×25×3 mm to 100×100×6 mm. These dimensions refer to the runner angle sections and not the overall tray width and height.
Aparna Rollform holds ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 management-system certifications, subject to the scope stated on the applicable certificates. Buyers should check the certificate holder, scope, and validity separately from product material, coating and load documentation.
The material, coating, and load requirements should be clear before you place an order. Ask for the applicable standards and their editions to be stated in the technical submission, along with the documents needed for your project.
IEC 61537 covers requirements and tests for cable tray and cable ladder systems. However, a reference to this standard will not tell you how much weight a particular tray can carry. Check the manufacturer’s test information for the selected tray and support arrangement.
Management-system certificates and product test reports serve different purposes. Check the certificate holder, scope, and validity separately from the tray’s material, coating, and load records.
Aparna Rollform follows applicable material and product standards for cable tray manufacturing. The relevant Indian Standards depend on the material, coating and product specification. Where applicable, standards referenced in the approved technical documentation include IS 2062, IS 277, IS 2629 and IS 737.
Before comparing prices, you have to consider these five points:
Ask for the factory address and confirm whether the company manufactures the products being quoted. If a plant visit is part of your purchasing process, agree on the arrangements before placing an order.
Pre-galvanised sheet is coated before fabrication. Cutting and punching can expose steel at the edges, although nearby zinc can offer some protection. Galvanising after fabrication coats the fabricated surfaces, including cut edges and welds. Match the finish to the project’s exposure conditions.
Check width, side height, thickness, and length. Two trays with the same width may have different specifications. Include covers, bends, and other fittings when comparing quotations.
List the material certificates, test reports and coating records your project requires. Ask the supplier to confirm which documents will be provided. Do not assume that every quotation includes the same documentation.
If your team needs to inspect the material before despatch, put this in the order requirements. Agree on the inspection stage, checks, and release process in advance.
To request a quotation, send the tray schedule or bill of quantities with the approved drawings. Include the tray type, width, height, thickness, finish, and quantity in running metres. Mention whether covers, bends, tees, reducers, or other accessories are required.
For requirements outside the standard range, share the drawings and ask the team to confirm manufacturing feasibility. Keep these details in the written quotation so that the order matches the approved requirement.
When comparing prices, check the rate per running metre for the same specification. Confirm whether covers, fittings, packing, freight and taxes are included or quoted separately. A lower rate may cover a different thickness, finish or scope.
Include the site address and required material date in your enquiry. Obtain the delivery commitment in writing before finalising the order.
Cable trays are widely used across sectors and industries such as pharmaceuticals, data centres, commercial and institutional buildings, and the power and utility sectors.
Perforated and ladder cable trays can be used for routing power, control and instrumentation cables. The choice of material and finish should consider the site’s exposure, cleaning requirements and project specifications.
Perforated and ladder cable trays can be used for organised cable routing in data centres and IT facilities. Tray selection should consider cable quantity, available space, support spacing, load requirements and access for maintenance.
Perforated and solid-bottom cable trays can be used for routing electrical and communication cables in commercial and institutional buildings. The required tray size, finish and support arrangement should be selected according to the project requirements.
Ladder and heavy-duty cable trays are commonly used where larger cable loads and longer support spans need to be considered. Material, coating, tray thickness and support arrangement should be selected according to the installation environment and design requirements.

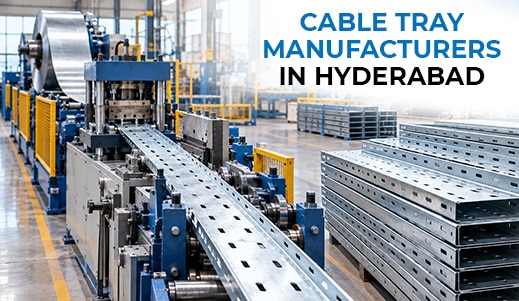

Aparna Rollform uses specialised machinery at its Hyderabad facility, including roll forming, bending, shearing, welding, pressing, levelling, and ladder bending equipment to support different cable tray requirements.
These machines help manufacture different types and sizes of cable trays as per project requirements. Buyers can share their drawings and requirements with the sales team for further details.
If you are looking for a cable tray manufacturer in Hyderabad, get in touch with Aparna Rollform in Hyderabad.
Aparna Rollform’s plant is located in Patancheru, Rudraram Mandal, Telangana. Its corporate office is in Jubilee Hills, Hyderabad.
Yes, both pre-galvanised (GI) and hot-dip galvanised (HDG) finishes are available for ladder-type cable trays. Other available finishes include powder coated, stainless steel, aluminium, and painted cable trays.
No, Aparna Rollform does not offer FRP and PVC cable trays. Available cable trays include perforated, ladder-type, angular ladder, and solid-bottom designs.
A lead time of 1 week for pre-galvanized cable trays and 2 weeks for hot-dip galvanized (HDG) cable trays is standard for manufacturing and dispatching average order sizes. For more details, contact Aparna Rollform today.
Yes, Aparna Rollform supplies cable trays and covers across all locations in Hyderabad and Telangana.
The minimum quantity is 1 km (1000 meters) of cable trays of any size or type, including ladder, perforated, and raceway trays, with any required finish.
